SBF Feature
_ Improved driving performance by applying AC motor (drive & hydraulic)
_ Wide view
_ Check the operation status of the equipment through the LCD display
SBF SERIES
The SBF series is an electric seated forklift with a simple and compact design,
providing optimum productivity for handling various materials in the industrial field.
SBF SERIES
The SBF series is an electric seated forklift with a simple and compact design,
providing optimum productivity for handling various materials in the industrial field.
Electronic
Brake
Safety
Guard
Robust
durability
Safety
Certification
SBF
_ Driving mode of P – E – S
_ Different length of control lever
_ Automatic speed reduction during rotation
_ Easy maintenance
SBF
_ Driving mode of P – E – S
_ Different length of control lever
_ Automatic speed reduction during rotation
_ Easy maintenance

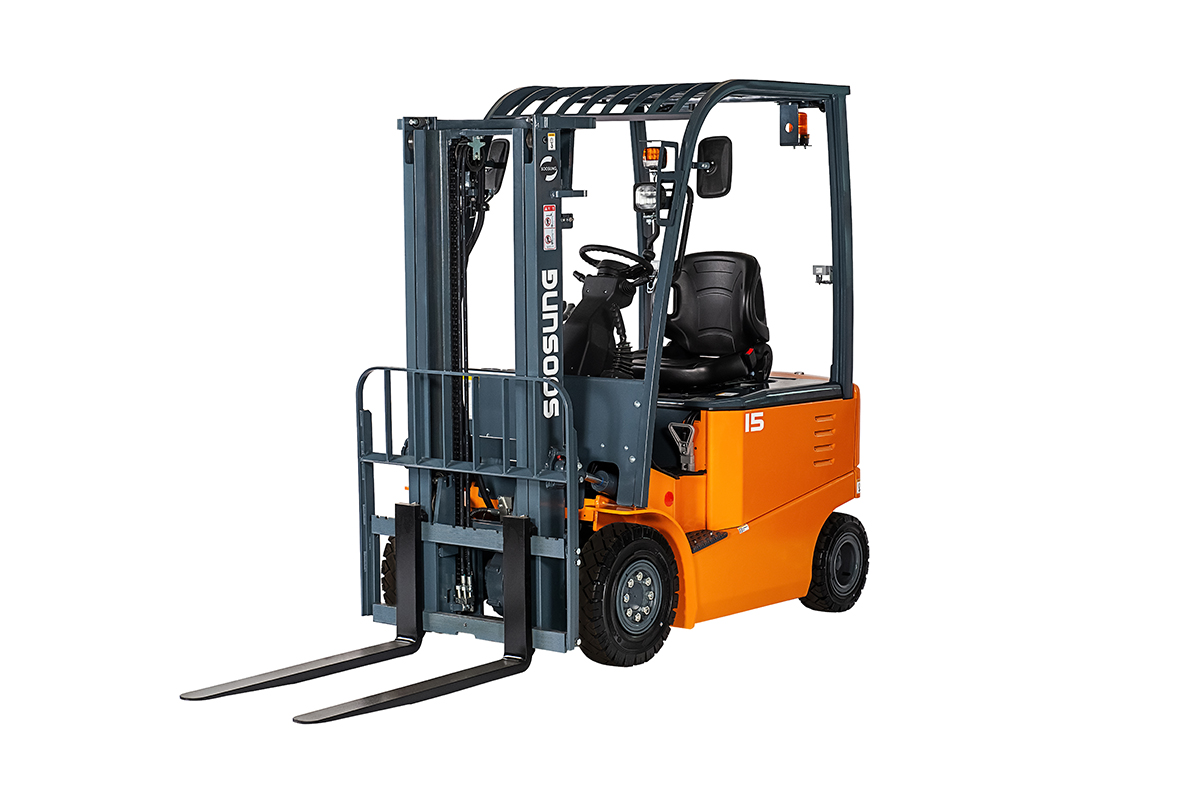

SBF-15A
Load Capacity
1,500
Lifting Height
3,000
Turning Radius
1,750
SBF-20A
Load Capacity
2,500
Lifting Height
3,300
Turning Radius
2,020

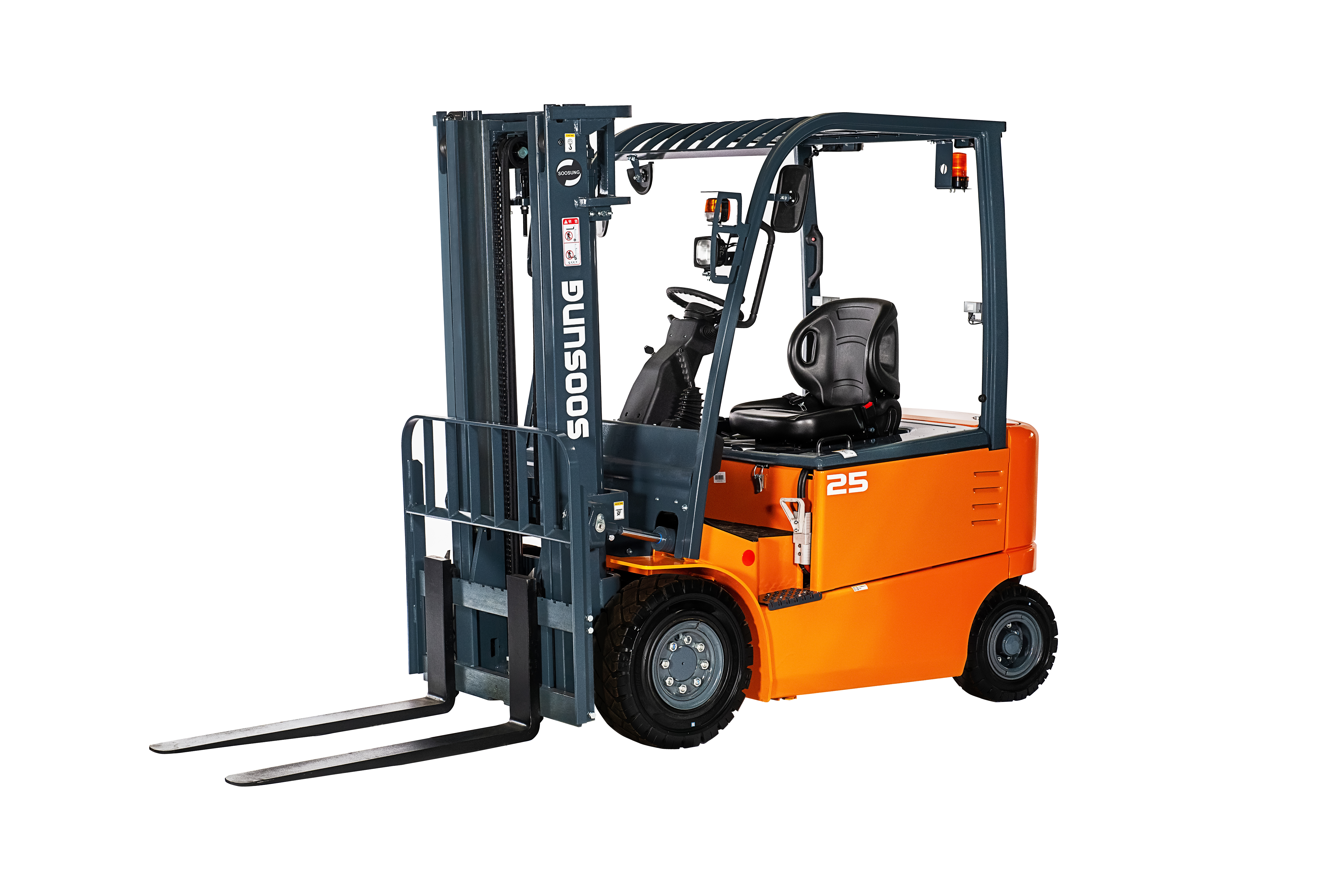

SBF-25A
Load Capacity
2,980
Lifting Height
3,300
Turning Radius
2,210

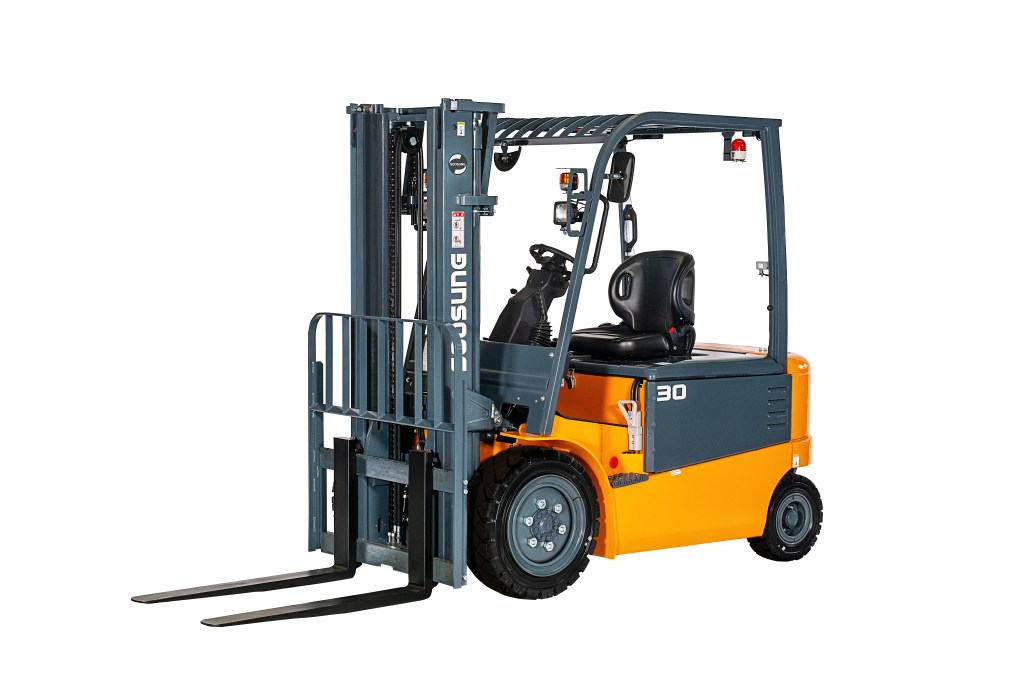

SBF-30A
Load Capacity
3,000
Lifting Height
3,000
Turning Radius
2,020
Model
SBF-15A
SBF-20A
SBF-25A
SBF-30A
Character
Rated capacity
Q
kg
1,500
2,000
2,500
3,000
Load centre distance
C
mm
500
500
500
500
Wheel base
L1
mm
1,380
1,550
1,550
1,685
Tyre
Tyre Tyre type
-
-
Pneumatic
Pneumatic
Pneumatic
Pneumatic
Wheel number(front/rear)
-
-
2/2
2/2
2/2
2/2
Front wheel base
W3
mm
910
960
960
1000
Rear wheel base
W2
mm
920
950
950
950
Tyre(front)
-
-
6.00-9-10PR
23x9-10-16PR
23x9-10-16PR
28x9-15-12PR
Tyre(rear)
-
-
16x6-8-10PR
16x7-8-14PR
18x7-8-14PR
18x7-8-14PR
Size
Front overhang
L2
mm
390
434
434
485
Mast tilt angle, FonVrear
a / g
°
6/8
6/8
6£8
610
Height with mast retraction
H1
mm
1,985
1,995
1,995
2,075
Free lifting height
H3
mm
155
140
140
145
Max. Lifting height
H
mm
3,000
3,000
3,000
3,000
Max. height under working condition
H2
mm
4,030
4,042
4,042
4,230
Overhead guard height
H4
mm
2,130
2,150
2,150
2,215
Fork size:thickness x width x length
T/W/L
mm
40x122x1,070
40x122x1,070
40x122x1,070
45x125x1,070
Truck body length(fork excluded)
L'
mm
2,070
2,285
2,295
2,490
Truck body width
W1
mm
1D86
1,185
1,185
1,241
Turning radius
r
mm
1,750
2,000
2,020
2,210
Clearance between mast and ground
H5
mm
90
110
110
135
Clearance between wheel base centerandground(loaded)
H6
mm
95
115
115
145
Right angle stacking aistewidth(paIIet1000 x1000mm, clearance 200mm)
Ast
mm
3,340
3,635
3,725
3,895
Right angle stacking aisle width(paIIet1200 x 1200mm, clearance 200mm)
Ast
mm
3,540
3,855
3,855
4,095
Lateral fork adjustment (outside of forks) maxJmin.
W5
mm
960/200
1,030/244
1,030/244
1,060/250
Performance
Travelling speed : loaded/unloaded
-
km/h
15/16
14.5/15
14.5/15
12/13
Lifting speed : loaded/unloaded
-
m/s
0.40/0.60
0.35/0.51
0.33/0.51
0.24/0.4
Lowering speed: loaded/unloaded
-
m/s
0.50/0.40
0.49/0.41
0.49/0.41
0.42
Gradeability(loaded)
-
%
22
22
20
13
Weight
Total weight(withMithout battery)
-
kg
3,030/2,240
4,160/3,060
4,350/3,250
4T60/3,555
axle load : unloaded, FonVrear
-
kg
1,505/1,525
1,900/2,260
2,000/2,350
2,210/2,550
Axle load: loaded, front/rear
-
kg
4,005/525
5,300/860
5,950/900
6,900/860
Battery
Battery voltage/capacity k5
-
V/Ah
48/400(max600)
48/600
48/600
48/700
Motor and controller
Drive motor power-60 minutes
-
kW
8.2
11.5
11.5
11
Lifting motor power-s3 1596
-
kW
10.6
15
15
15
Drive motor controlling mode
-
-
MOSFET/AC
MOSFET/AC
MOSFET/AC
MOSFET/AC
Lifting motor controlling mode
-
-
MOSFET/AC
MOSFET/AC
MOSFET/AC
MOSFET/AC
Service brake/parking brake
-
-
Hydraulic/Mechanial
Hydraulic/Mechanial
Hydraulic/Mechanial
Hydraulic/Mechanial
Hydraulic system working pressure
-
mpa
14.5
17.5
17.5
21
🔹 The above appearance and specification are subject to change without prior notice. Please inquire separately for mast option specifications.
