SWS SERIES
The SWS series is a forklift type optimized for pallet loading.
Type C: Forged fork type
Type P: Pallet type
SWS SERIES
The SWS series is a forklift type optimized for pallet loading.
Type C: Forged fork type
Type P: Pallet type
Electronic
Brake
Safety
Guard
Robust
durability
Safety
Certification
SWS Features
_ AC motor & system applied (quiet driving without vibration and noise)
_ Fork or pallet type selection (C type: forged fork / P type: pallet type)
_ Handle EM switch (prevents operator jamming due to emergency stop)
_ Creep function (drive without lowering the steering handle)
SWS Features
_ Battery level indication (BDI)
_ With folding footrest/warning light
_ Safety guard/non-marking drive wheel (optional)
SWS Features
_ Battery level indication (BDI)
_ With folding footrest/warning light
_ Safety guard/non-marking drive wheel (optional)
SWS-1000P
Load Capacity
1,000
Lifting Height
2,500
Turning Radius
1,626
Fork Spread
680

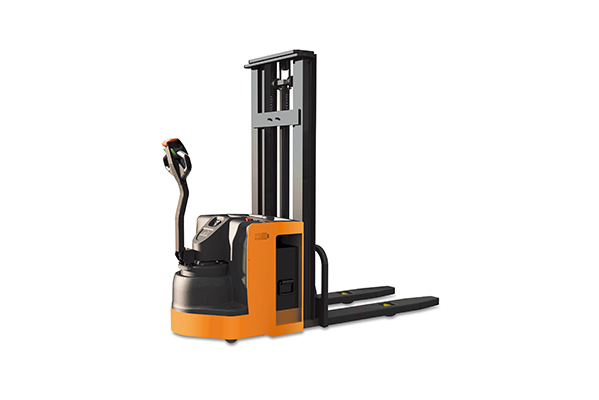

SWS-1000LP
Load Capacity
1,000
Lifting Height
2,500
Turning Radius
1,626
Fork Spread
216 / 740
Model
Unit
SWS-1000P
SWS-1000LP
Load Capacity
kg
1,000
1,000
Load Center
mm
500
500
Lifting Height
mm
1,500
2,500
Fork Length
mm
1,150
Fork Width
-
180
Gradeability
%
10
Overall Length
mm
2,102
2,102
Overall Width
mm
740
740
Overall Height
mm
2,071
1,885
Wheel Base
mm
1,386
1,386
Fork Spread (optional)
mm
550 (680)
Weight (Ind. Battery)
kg
880
957
Turning Radius
mm
1,626
With Load
km/hr
3~4
Travel Speed
Without Load
km/hr
4~5
Driving
kw
AC 16Vx1.5kw
Motor
Hydraulic
kw
DC 24Vx2.2kw
Battery
-
24V 170Ah/5Hr
Battery Charger
-
AC1Φ x 220V, 50/60Hz
Driving
-
F.E.T Control Type
Control
Hydraulic
-
Magnetic Contactor Type
🔹 The above appearance and specification are subject to change without prior notice. Please inquire separately for mast option specifications.
