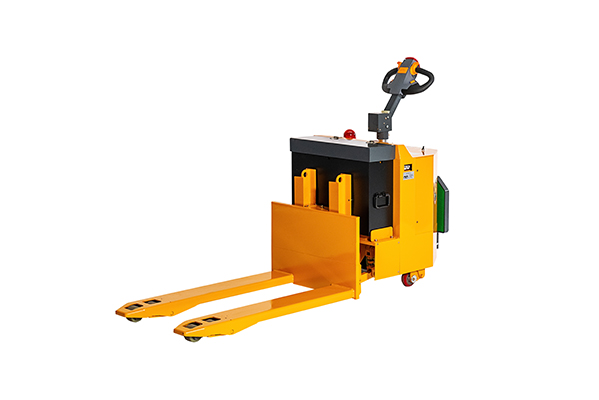

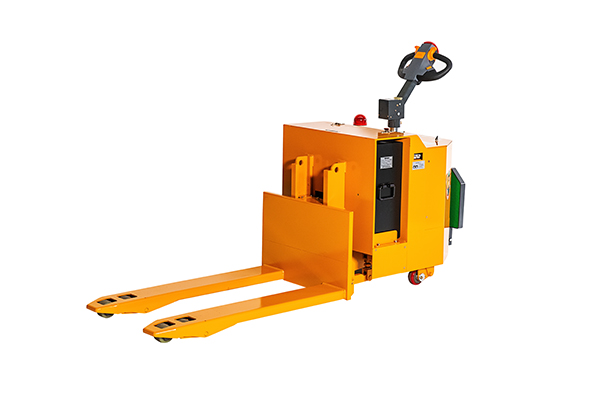

SWP SERIES
The SWP series ranges from small businesses to large-scale distribution centers. The electric pallet truck you need in any warehouse. Various lineups based on payload It guarantees the best workability with reasonable price and excellent performance.
SWP SERIES
The SWP series ranges from small businesses to large-scale distribution centers.
The electric pallet truck you need in any warehouse.
Various lineups based on payload It guarantees the best workability with reasonable price and
excellent performance.
Electronic
Brake
Safety
Guard
Robust
durability
Safety
Certification
SWP Features
_ AC motor & system applied (quiet driving without vibration and noise)
_ Sturdy and durable
_ Custom made to fit the customer’s site
_ Driving speed adjustable (switch type)
_ Handle EM switch (prevents operator jamming due to emergency stop)
_ Automatic deceleration in case of rapid rotation
SWP Features
_ Fork design optimized for pallet work (fork structure that can be used without sliding even on empty pallets)
_ Creep function (drive without lowering the steering handle)
SWP Features
_ Fork design optimized for pallet work (fork structure that can be used without sliding even on empty pallets)
_ Creep function (drive without lowering the steering handle)
SWP-2000
Load Capacity
2,000
Lifting Height
205
Fork
1,150 x 175
Fork Spread
680
Turning Radius
1,740
SWP-2500
Load Capacity
2,500
Lifting Height
205
Fork
1,150 x 175
Fork Spread
680
Turning Radius
1,871
SWP-3000
Load Capacity
3,000
Lifting Height
205
Fork
1,150 x 175
Fork Spread
680
Turning Radius
1,928

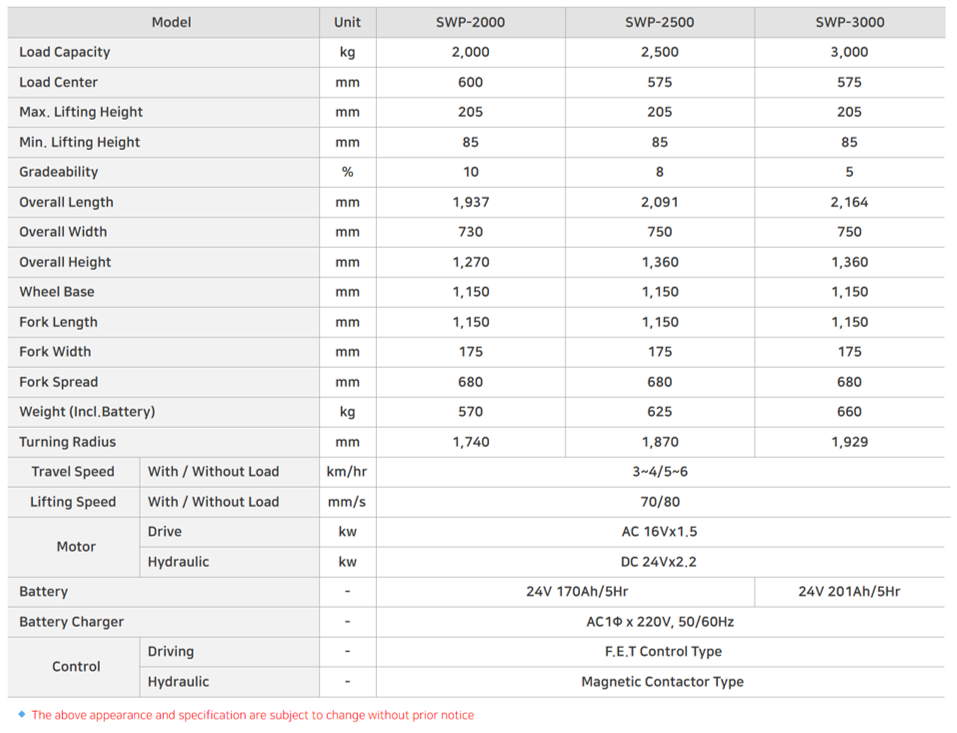

Model
Unit
SWP-2000
SWP-2500
SWP-3000
Load Capacity
kg
2,000
2,500
3,000
Load Center
mm
600
575
575
Max. Lifting Height
mm
205
205
205
Min. Lifting Height
mm
85
85
85
Gradeability
%
10
8
5
Overall Length
mm
1,937
2,091
2,164
Overall Width
mm
730
750
750
Overall Height
mm
1,270
1,360
1,360
Wheel Base
mm
1,150
1,150
1,150
Fork Length
mm
1,150
1,150
1,150
Fork Width
mm
175
175
175
Fork Spread
mm
680
680
680
Weight (Incl.Battery)
kg
570
625
660
Turning Radius
mm
1,740
1,870
1,929
Travel Speed
With / Without Load
km/hr
3~4/5~6
Lifting Speed
With / Without Load
mm/s
70/80
Drive
kw
AC 16Vx1.5
Motor
Hydraulic
kw
DC 24Vx2.2
Battery
-
24V 170Ah/5Hr
24V 201Ah/5Hr
Battery Charger
-
AC1Φ x 220V, 50/60Hz
Driving
-
F.E.T Control Type
Control
Hydraulic
-
Magnetic Contactor Type
🔹 The above appearance and specification are subject to change without prior notice
