SWP LITHIUM SERIES
The SWP series ranges from small businesses to large-scale distribution centers.
The electric pallet truck you need in any warehouse.
Various lineups based on payload It guarantees the best workability with reasonable price
and excellent performance.
SWP LITHIUM SERIES
The SWP series ranges from small businesses to large-scale distribution centers.
The electric pallet truck you need in any warehouse.
Various lineups based on payload It guarantees the best workability with reasonable price
and excellent performance.
Electronic
Brake
Safety
Guard
Robust
durability
Safety
Certification
Advantages of lithium batteries
_ Lithium battery type
_ Easy to use without maintenance
_ Easy battery replacement
_ Fast charging time / Long time use
SWP-Lithium battery series
Load Capacity
1,500 / 1,800 / 2,000
Lifting Height
200
Fork
1,150 x 150
Fork Spread
685
Turning Radius
1,355

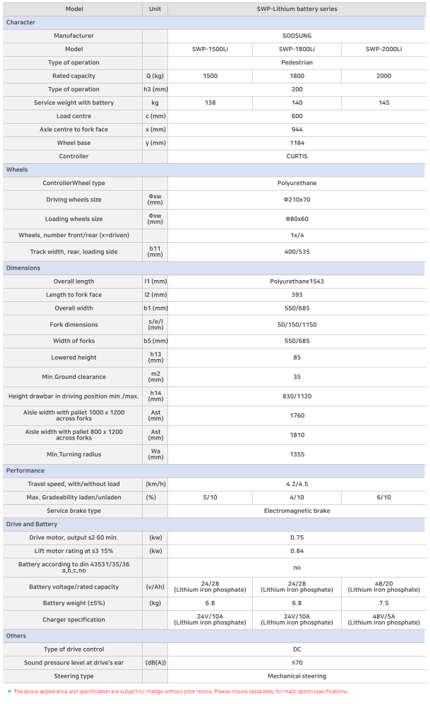

Model
Unit
SWP-Lithium battery series
Character
Manufacturer
SOOSUNG
Model
SWP-1500Li
SWP-1800Li
SWP-2000Li
Type of operation
Pedestrian
Rated capacity
Q (kg)
1500
1800
2000
Type of operation
h3 (mm)
200
Service weight with battery
kg
138
140
145
Load centre
c (mm)
600
Axle centre to fork face
x (mm)
944
Wheel base
y (mm)
1184
Controller
CURTIS
Wheels
ControllerWheel type
Polyurethane
Driving wheels size
Φxw (mm)
Φ210x70
Loading wheels size
Φxw (mm)
Φ80x60
Wheels, number front/rear (x=driven)
1x/4
Track width, rear, loading side
b11 (mm)
400/535
Dimensions
Overall length
l1 (mm)
Polyurethane1543
Length to fork face
l2 (mm)
393
Overall width
b1 (mm)
550/685
Fork dimensions
s/e/l (mm)
50/150/1150
Width of forks
b5 (mm)
550/685
Lowered height
h13 (mm)
85
Min.Ground clearance
m2 (mm)
35
Height drawbar in driving position min./max.
h14 (mm)
830/1120
Aisle width with pallet 1000 x 1200
across forks
Ast (mm)
1760
Aisle width with pallet 800 x 1200
across forks
Ast (mm)
1810
Min.Turning radius
Wa (mm)
1355
Performance
Travel speed, with/without load
(km/h)
4.2/4.5
Max. Gradeability laden/unladen
(%)
5/10
4/10
6/10
Service brake type
Electromagnetic brake
Drive and Battery
Drive motor, output s2 60 min.
(kw)
0.75
Lift motor rating at s3 15%
(kw)
0.84
Battery according to din 43531/35/36 a,b,c,no
no
Battery voltage/rated capacity
(v/Ah)
24/28
(Lithium iron phosphate)
24/28
(Lithium iron phosphate)
48/20
(Lithium iron phosphate)
Battery weight (±5%)
(kg)
6.8
6.8
7.5
Charger specification
24V/10A
(Lithium iron phosphate)
24V/10A
(Lithium iron phosphate)
48V/5A
(Lithium iron phosphate)
Others
Type of drive control
DC
Sound pressure level at drive's ear
(dB(A))
≤70
Steering type
Mechanical steering
🔹 The above appearance and specification are subject to change without prior notice. Please inquire separately for mast option specifications.
