STT SERIES
The STT series helps to transport various bogies by adjusting the height of
the tow hook using a cylinder.
STT SERIES
The STT series helps to transport various bogies by adjusting the height of
the tow hook using a cylinder.
Electronic
Brake
Safety
Guard
Robust
durability
Safety
Certification
STT Features
_ AC motor & system applied (quiet driving without vibration and noise)
_ Tow hook height adjustment (electric)
_ Driving speed adjustable (switch type)
_ Handle EM switch (prevents operator jamming due to emergency stop)
_ With folding footrest/warning light

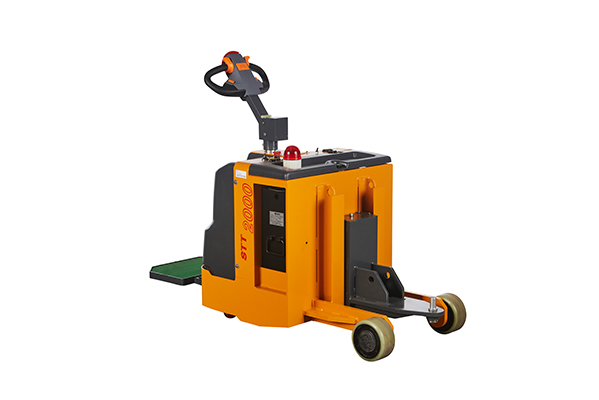

STT-2000
Load Capacity
2,000
Drawbar Height
200 ~ 325
Turning Radius
1,150
Model
Unit
STT-2000
Towing Capacity
kg
2,000
Towing Power
kg
50
Drawbar Height (Lifted / Lowered)
mm
325/200
Drawbar
mm
Φ30x60L
Gradeability
%
10
Overall Length
mm
1,385
Overall Width
mm
650
Overall Height
mm
1,390
Weight
kg
650
Turning Radius
mm
1,150
Travel Speed
With / Without Load
km/hr
4-5/5-6
Drive
kw
AC 16Vx1.5kw
Motor
Hydraulic
kw
DC 24Vx2.2kw
Battery
-
24V 170Ah/5Hr
Battery Charger
-
AC1Φ x 220V, 50/60Hz
Driving
-
F.E.T Control Type
Control
Hydraulic
-
Magnetic Contactor Type
🔹 The above appearance and specification are subject to change without prior notice
