SPT SERIES
The SPT series is equipped with multi-functional all-weather capabilities.
It helps to transport cargo conveniently.
SPT SERIES
The SPT series is equipped with multi-functional all-weather capabilities.
It helps to transport cargo conveniently.
Electronic
Brake
Safety
Guard
Robust
durability
Safety
Certification
SPT Features
_ AC motor & system applied (quiet driving without vibration and noise)
_ Sturdy load platform and strong power
_ Electronic EPS handle applied (Optional)
_ Steering handle tilting device that is adjusted to fit
the driver’s body shape
_ 4-Wheel type production possible (Optional)
SPT-1000
Load Capacity
1,000
Cargo deck size
1,700 x 1,140 x 454
Turning Radius
2,726

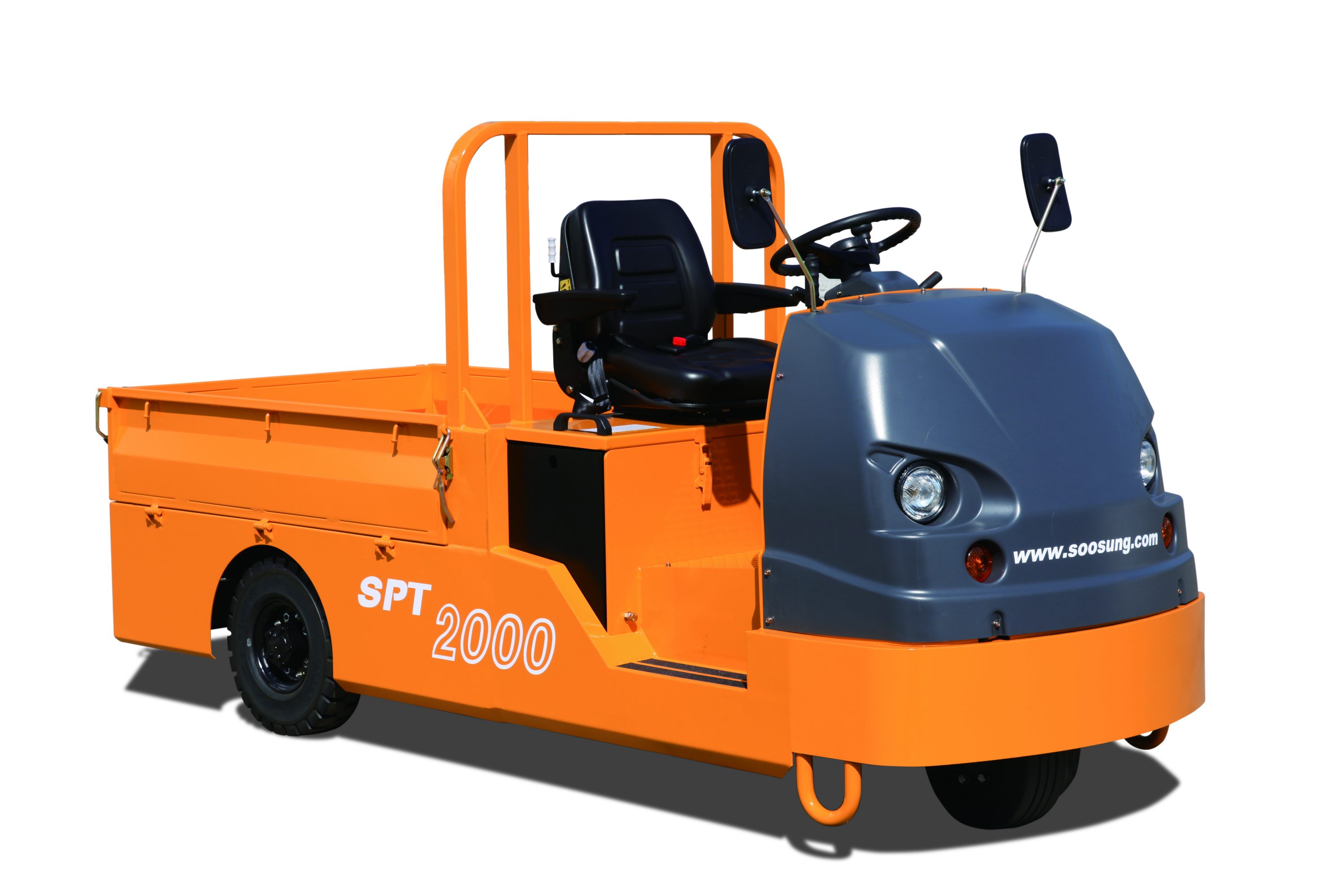

SPT-2000
Load Capacity
2,000
Cargo deck size
1,400 x 1,000 x 550
Turning Radius
2,308
Model
Unit
SPT-1000 (3Wheel)
SPT-2000 (3Wheel)
Load Capacity
kg
1,000
2,000
Length
mm
1,700
1,400
Cargo Deck
Width
mm
1,140
1,100
Height
mm
454
550
Overall Length
mm
3,140
3,031
Overall Width
mm
1,160
1,200
Overall Height
mm
1,898
1,480
Weight
kg
850
1,383
Wheel Base
mm
2,040
1,982
Turning Radius
mm
2,726
2,308
Travel Speed
With / Without Load
km/hr
10/15
6/10
Driving Motor
kw
AC 48V, 5kw
AC 30V, 5.3kw
Battery
-
48V (6x8V 190Ah)
DC48Vx201Ah/5Hr
Battery Charger
-
AC1Φx220V, 50/60Hz
AC1Φx220V, 50/60Hz
Control System
-
F.E.T Control Type
F.E.T Control Type
Type
-
Solid Tire
Solid Tire
Type
Front
(no.)
4.00-8 (1)
Φ343x140 (1)
Rear
(no.)
4.00-8 (2)
5.00-8 (2)
🔹 The above appearance and specification are subject to change without prior notice
