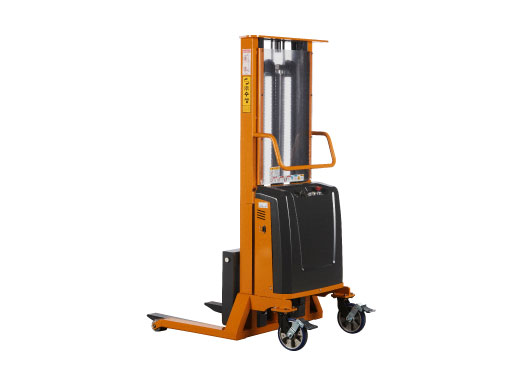

SFE SERIES
Stacker series is convenient in narrow space. Helps transport heavy objects.
SFE SERIES
Stacker series is convenient in narrow space. Helps transport heavy objects.
Electronic
Brake
Safety
Guard
Robust
durability
Safety
Certification
SFE Features
_ Sturdy and durable
_ Safety plate (PC) attached
_ Equipped with high-load casters
SFE-500
Load capacity
500
Lifting Height
1,500
Fork length
700
SFE-500L
Load capacity
500
Lifting Height
2,500
Fork length
700
SFE-1000
Load capacity
1,000
Lifting Height
1,500
Fork length
700
SFE-1000L
Load capacity
1,000
Lifting Height
2,500
Fork length
700

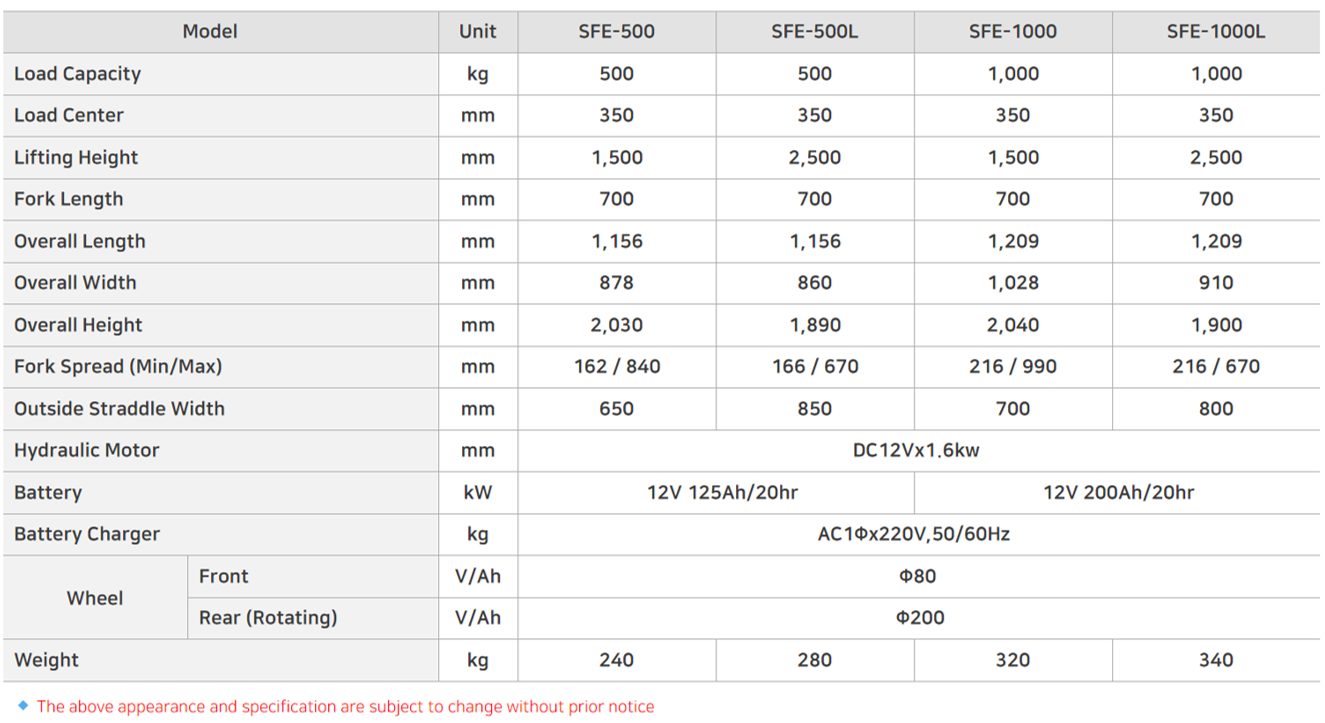

Model
Unit
SFE-500
SFE-500L
SFE-1000
SFE-1000L
Load Capacity
kg
500
500
1,000
1,000
Load Center
mm
350
350
350
350
Lifting Height
mm
1,500
2,500
1,500
2,500
Fork Length
mm
700
700
700
700
Overall Length
mm
1,156
1,156
1,209
1,209
Overall Width
mm
878
860
1,028
910
Overall Height
mm
2,030
1,890
2,040
1,900
Fork Spread (Min/Max)
mm
162 / 840
166 / 670
216 / 990
216 / 670
Outside Straddle Width
mm
650
850
700
800
Hydraulic Motor
mm
DC12Vx1.6kw
Battery
kW
12V 125Ah/20hr
12V 200Ah/20hr
Battery Charger
kg
AC1Φx220V,50/60Hz
Front
V/Ah
Φ80
Wheel
Rear (Rotating)
V/Ah
Φ200
Weight
kg
240
280
320
340
🔹 The above appearance and specification are subject to change without prior notice
