SDL SERIES
The SDL series is the solution to the loading operation in drum containers.
Anyone can operate the equipment easily, and it is possible to make a custom order
according to the drum you are using.
SDL SERIES
The SDL series is the solution to the loading operation in drum containers.
Anyone can operate the equipment easily, and it is possible to make a custom order
according to the drum you are using.
Electronic
Brake
Safety
Guard
Robust
durability
Safety
Certification
SDL Features
_ Standard drum (Ø600x900L)
_ “PE drum” type
_ “recumbent drum” standing type
_ With electric geared motor (electric drum rotation)
_ It can be manufactured to fit drums of various specifications.

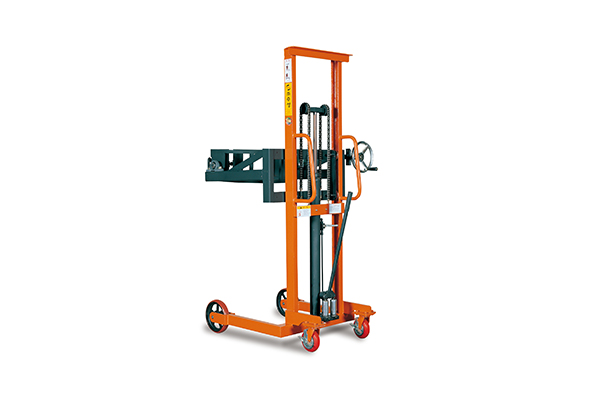

SDL-300H
Load capacity
300
Drum size
Ø600 x 900L
Lifting Height
1,470
SDL-300HL
Load capacity
300
Drum size
Ø600 x 900L
Lifting Height
2,460
SDL-300HL
Load capacity
300
Drum size
Ø600 x 900L
Lifting Height
1,460
SDL-300EL
Load capacity
300
Drum size
Ø600 x 900L
Lifting Height
2,470

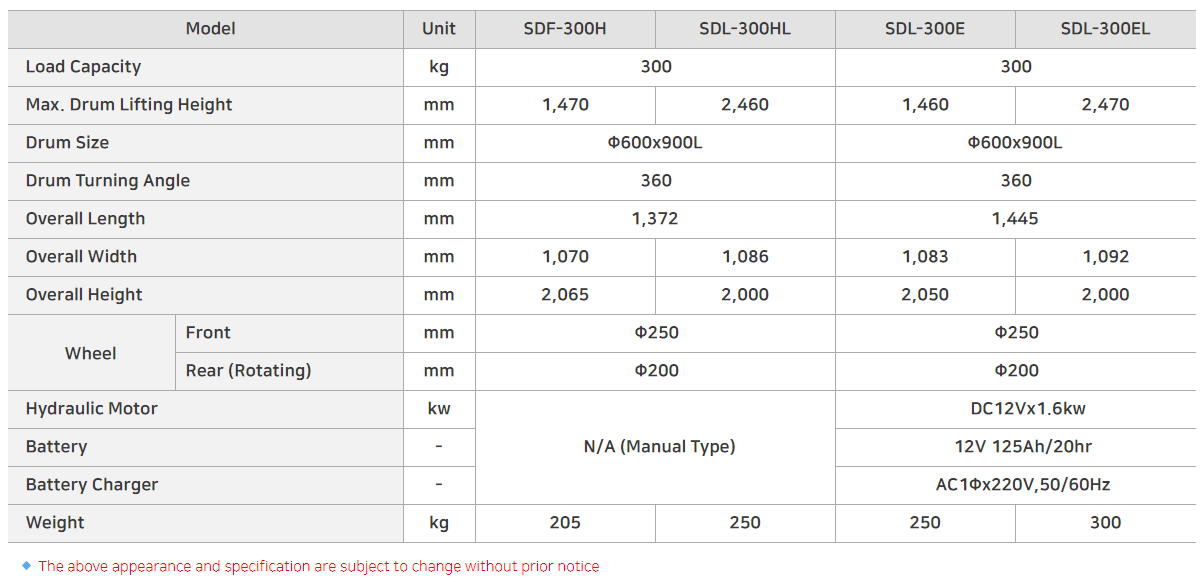

Model
Unit
SDF-300H
SDL-300HL
SDL-300E
SDL-300EL
Load Capacity
kg
300
300
Max. Drum Lifting Height
mm
1,470
2,460
1,460
2,470
Drum Size
mm
Φ600x900L
Φ600x900L
Drum Turning Angle
mm
360
360
Overall Length
mm
1,372
1,445
Overall Width
mm
1,070
1,086
1,083
1,092
Overall Height
mm
2,065
2,000
2,050
2,000
Front
mm
Φ250
Φ250
Wheel
Rear (Rotating)
mm
Φ200
Φ200
Hydraulic Motor
kw
DC12Vx1.6kw
Battery
-
N/A (Manual Type)
12V 125Ah/20hr
Battery Charger
-
AC1Φx220V,50/60Hz
Weight
kg
205
250
250
300
🔹 The above appearance and specification are subject to change without prior notice
