SCT SERIES
The SCT series is a boarding-type electric tow truck, which can tow goods
such as a transport cart, cart or tray.
SCT SERIES
The SCT series is a boarding-type electric tow truck, which can tow goods
such as a transport cart, cart or tray.
Electronic
Brake
Safety
Guard
Robust
durability
Safety
Certification
SCT-2000 Features
_ AC motor & system applied (quiet driving without vibration and noise)
_ Towing hook height adjustment (removable)
_ Handle EM switch (prevents operator jamming due to emergency stop)
_ Attach a warning light
_ With LIDAR sensor (Optional)
_ Train carriage (Optional)

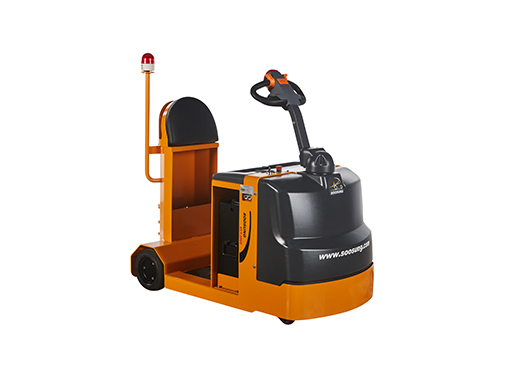

SCT-2000
Load Capacity
2,000
Drawbar Height
180 ~ 340
Turning Radius
1,260
Model
Unit
SCT-2000
Towing Capacity
kg
2,000
Towing Power
kg
50
Drawbar Height (Lifted / Lowered)
mm
290/181
Drawbar
mm
Φ30x60L
Gradeability
%
10
Overall Length
mm
1,565
Overall Width
mm
750
Overall Height
mm
1,458
Weight
kg
630
Turning Radius
mm
1,260
Travel Speed
With / Without Load
km/hr
3~4/5~6
Drive
kw
AC 16Vx1.5kw
Motor
Hydraulic
kw
DC 24Vx2.2kw (optional)
Battery
-
24V 170Ah/5Hr
Battery Charger
-
AC1Φ x 220V, 50/60Hz
Driving
-
F.E.T Control Type
Control
Hydraulic
-
Magnetic Contactor Type
🔹 The above appearance and specification are subject to change without prior notice
