LT SERIES
In case of repetitive work in machine tools and dedicated machine line work,
the operator does not bend his back.
Productivity is improved because it can be adjusted to the optimal height for injecting or
withdrawing the product. It can reduce operator fatigue.
LT SERIES
In case of repetitive work in machine tools and dedicated machine line work,
the operator does not bend his back.
Productivity is improved because it can be adjusted to the optimal height for injecting or
withdrawing the product. It can reduce operator fatigue.
Electronic
Brake
Safety
Guard
Robust
durability
Safety
Certification
■ Manual Series
LT-23K
Load capacity
230
Table size
820 x 500
Lifting Height
285 ~ 910
LT-35S
Load capacity
350
Table size
900 x 510
Lifting Height
395 ~ 1330

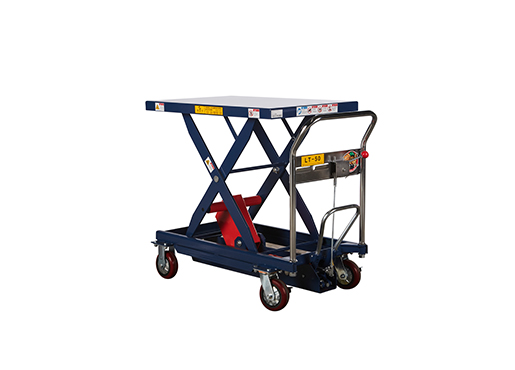

LT-50
Load capacity
500
Table size
900 x 600
Lifting Height
295 ~ 1010

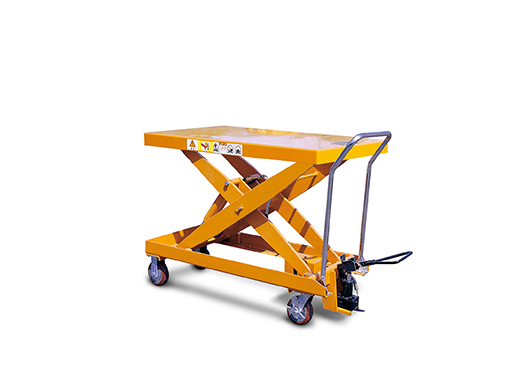

LT-100
Load capacity
1,000
Table size
1,200 x 610
Lifting Height
380 ~ 1,000

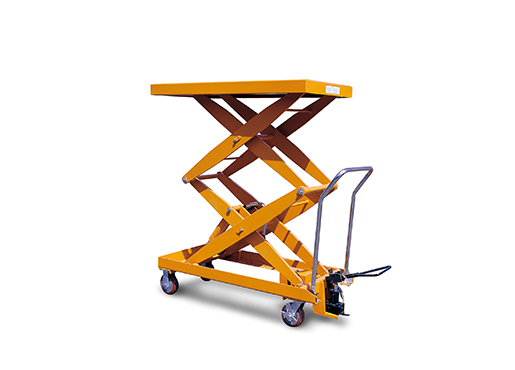

LT-100S
Load capacity
1,000
Table size
1,200 x 610
Lifting Height
490~1,730
LT-23K
LT-35S
LT-50
LT-100
LT-100S
Model
Unit
1 stage
2 stage
1 stage
1 stage
2 stage
Load capacity
kg
230
350
500
1,000
1,000
Max.Lifting Height
mm
910
1,330
1,010
1,010
1,730
Min.Lifting Height
mm
285
395
295
380
1,730
Table Length
mm
820
900
900
1,200
1,200
Table width
mm
500
510
600
610
610
Footsteps on lifting
mm
47
70
29
60
106
Weight
kg
84
102
102
162
240
🔹 The above appearance and specification are subject to change without prior notice
*Click to View
■ Electric Series

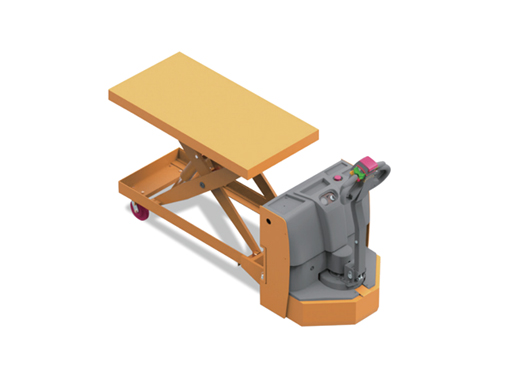

LT-50D
Load Capacity
500
Table Size
1,200 x 610
Lifting Height
380 ~ 1,010

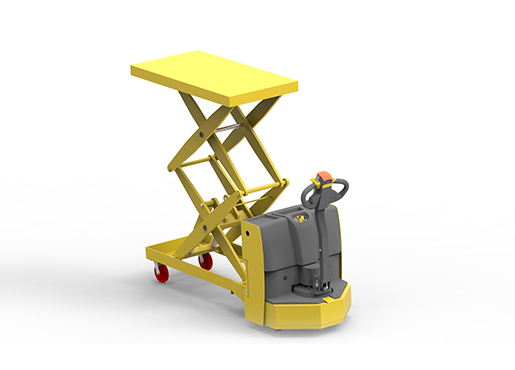

LT-50SD
Load Capacity
500
Table Size
1,200 x 610
Lifting Height
490 ~ 1,730
LT-80D
Load Capacity
800
Table Size
1,200 x 610
Lifting Height
380 ~ 1,000

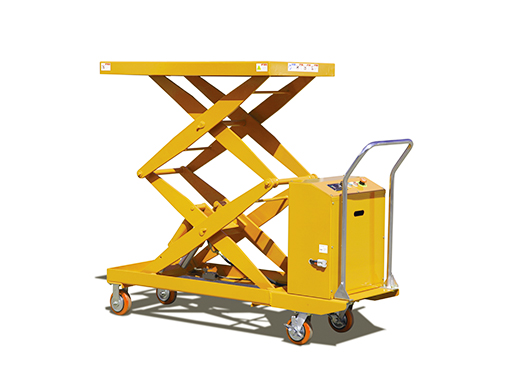

LT-80SD
Load Capacity
800
Table Size
1,200 x 610
Lifting Height
490 ~ 1,730
LT-50D
LT-50SD
LT-80D
LT-80SD
Model
Unit
1 stage
2 stage
1 stage
2 stage
Load Capacity
kg
500
500
800
800
Max.Lifting Height
mm
1,010
1,730
1,000
1,730
Min.Height of Table
mm
380
490
380
490
Table Length
mm
1,200
1,200
1,200
1,200
Table width
mm
1,600
1,800
2,000
2,500
Hydraulic Motor
1.5kW (DC)
1.5kW (DC)
Battery
12Vx100Ah
12Vx100Ah
Charger
1Φ×220V 50,60Hz
1Φ×220V 50,60Hz
Weight
kg
235
315
235
315
🔹 The above appearance and specification are subject to change without prior notice
